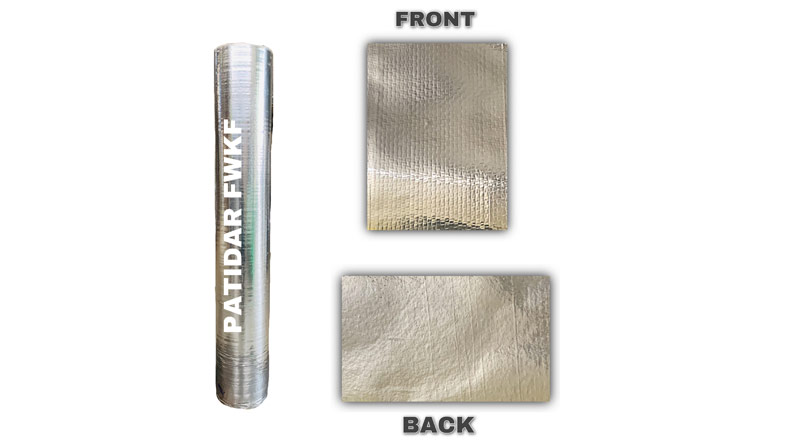

PATIDAR FWKF ( ALU.FOIL + WOVEN FABRIC + KRAFT PAPER + ALU.FOIL)

Foil Backed Fire Retardant Double-sided Reflective Insulation

Apply Woven fabric / Kraft Paper. which is a fabric-like material made from long fibers, bonded together by chemical, mechanical, heat or solvent treatment as backing, reflective aluminum foil as the outer surface laminated together by LDPE / acrylic adhesive, this foil insulation radiant barrier is Heavy weight, environment friendly, soft and easy to fold; usually be installed in dry environment to prevent heat conduction and thermal radiant.

PATIDAR Radiant barrier is a type of building material, reflecting thermal radiation and minimizing heat transfer. As thermal energy is often transmitted by conduction and convection, radiant barriers are reinforced with thermal insulation that slows down heat transfer by conduction or convection.

Application of Radiant Barrier/Reflective Barrier

• Thermal Insulation material
• Roof insulation
• Aluminium foil insulation
• Insulation Material
• PEB Insulation Material
• Reflective Barrier
• Insulation material Installation Service
• Aluminium Woven Foil Tape
• Perforated Radiant Barrier
• Pre-Engineered Building Insulation
• Fiberglass Insulations
• Under Roof Insulation
• Heat Insulation Material
• Perforated Insulation Material
• Radiant Floor Insulation
• Home Insulation
• Metal Building Insulation
• Aluminium Foil Insulation for Cold Chain Supply
• Protective Barrier Film
• Air Bubble Insulation Material
• Poultry Farm Insulation
• Double Side Woven Insulation
• Heat Reflective Insulation
• Factory Shed Insulation
• HVAC Insulation
• Livestock Insulation
• Mobile House Insulation
• Insulated Foil for Export Packaging

Quality and Benefits

• Heavy Weight, Environment friendly, soft and Eazy Fold.
• Greater Strength.
• Puncture Resistance.
• Wrinkle Free Material.
• Superior cooling Performance to lower the Temperature of your area.
• Fire Retardant of Radiant Barrier.
• Extra Heavy duty providing superior edge tears resistance during installation.

Performance

• Light Reflectivity reduced up to 97%.
• Leak Proof, Dust Proof, Low Emissivity helps to limit heat loss.
• Resistance against moisture and wind uplift.

Physical Property	Test Value	Test Method
Basic Weight	230-240gsm	Scale
Tensile Strength -MD	100-200 N/25mm	ASTM D 828
Tensile Strength -XD	100-200 N/25mm	ASTM D 828
Burst Strength	150 N/25mm	ASTM D 774
Temperature Resistant	Remains Flexible No Delamination	ASTM C 1263 -29 ~ 66 °C
Reflectivity of foil	97%	--
Emissivity	0.03	ASTM E408
