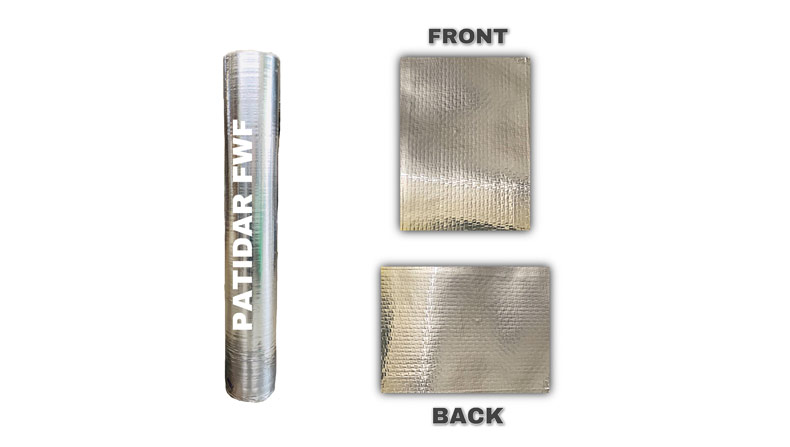

Woven Based Radiant Barrier Insulation Material

Our ALUFOIL WOVEN FABRIC ALUFOIL based 5 Layer Product made form aluminum foil with Special design HDPE Woven Fabric and Special Purpose Resins for Best Product, Quality and Performance. Radiant Barrier is mainly used for under roofing application, as attic insulation , Industrial and Commercial Building for protect form Heat and Cold application and all kind of thermal Insulation applications.

Our PATIDAR® FWF aluminum foil PE fabric insulation are mainly used under roof decking, under attic rafters, over existing attic insulation, in floors, walls and crawl spaces, and in industrial and commercial buildings to block radiant heat coming into house through the roof during the summer and retain indoor heat generatedduring the winter. Also used as a moisture vapor barrier in air conditioning ductworks and cold rooms. It is used as packing material for big machine to prevent moisture and radiant heat to contact machine.

We are offering a qualitative range of Woven Based Radiant Barrier which is manufactured by highly skilled professionals using high-quality components. In addition to this, these products can locate between the concrete deck and the roof tiles and used for a wide range of industrial, manufacturing, packaging and consumer application.

Typical Physical Property

Physical Property	Test Value	Test Method
Basic Weight	155-175 gsm	Scale
Tensile Strength -MD	300-400 N/25mm	ASTM D 828
Tensile Strength -XD	300-400 N/25mm	ASTM D 828
Burst Strength	315 N/25mm	ASTM D 774
Temperature Resistant	Remains Flexible No Delamination	ASTM C 1263 -29 ~ 66
Reflectivity of foil	97%	--
Emissivity	0.03	ASTM E408

Product Benefits

• Eco-friendly, environment friendly and radiant barriers.
• Aluminum foil woven fabric as a radiant barrier stops up to 97% of radiant heat transfer which improves the performance of the insulating material
• PE woven fabric provides high tensile strength and durability
• Aluminum foil woven fabric provides an efficient, space saving, and healthy method of temperature control and energy savings.
• Lightweight and easy handling and low cost waterproof type.
• Never use chemical bonding materials.
• PE woven fabric is used, you can sew it and easily install it on big building such a warehouse ceiling, factory building, super market, Pharmaceutical Pallet Cover,container liner.
• For heavier basic weight based on order are also available.
• Different lengths and basic weight are available.
